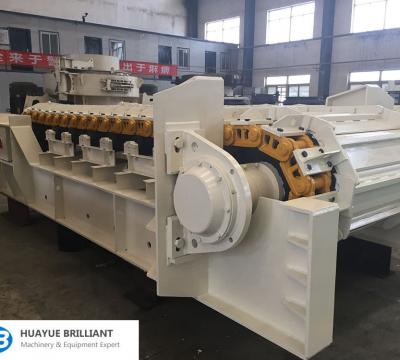

Apron Feeder
Overview
Heavy Duty Apron Feeder is a kind of equipment to transport various bulk materials. The Plate Feeder has been up to the level of international like product. It can feed materials evenly and continuously and the plate structure adopting double round lamination is unique in home market at present.
Most start non load, the basic almost no overload phenomenon, sometimes it start with the rated load, the hopper can load up to 70t coal at most;
It requires zero speed starting, speed can adjust between 0~0.6 m/min, can be manually controlled slow acceleration or deceleration, it can operation stable under the speed keep 0.3-0.5m/min
The external load is basically stable under stable operation, less impact;
The ambient temperature is low, large dust.
As the hopper deposits materials onto the apron feeder, the metal pans that make up the belt travel horizontally like a conveyor belt. When the trays reach the end of the belt, they dump, or feed the materials into another vessel. This may be a large bin, sorting machine, grinder, or any other vessel needed to complete the specified process. Workers can adjust the speed of the belt to speed up or slow down the manufacturing process as needed. Workers also can stop the belt to pause feeding and makes any required changes.



Features
  • It has high tension.
  • The track ensures its stable performance.
  • Excellent adaptability, the temperature, moisture and the environment have little or no effect on it
  • Easy to operate, long service life and easy to maintain.
Technical Data
NO. Model Width (mm) Wheel base     (mm) Max feed size     (mm) Capacity (t/h) Driving Power(kw)
1 GBZ1250×6 1250 6000 650 150 15
2 GBZ1400×8 1400 8000 750 250 18.5
3 GBZ1600×9 1600 9000 900 350 30
4 GBZ1800×9 1800 9000 1050 500 37
5 GBZ2000×10 2000 10000 1100 680 45
6 GBZ2200×10 2200 10000 1250 800 55
7 GBZ2400×12 2400 12000 1600 1000 55×2
Application
Apron feeder is a continuous transportation machine widely used in mining, metallurgy, building materials, coal chemical industry, port and industrial and mining enterprises. As a main storage silo or hopper into the crusher, rotary batching apparatus or transport equipment, continuous and uniform supply and bulk material transport all kinds of bulk weight and abrasion of. It is one of the important and necessary equipment in the processing and continuous production process of ore and raw materials.
