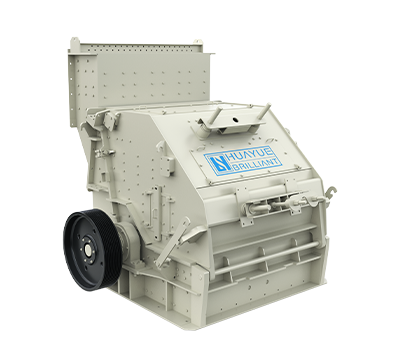

Impact Crusher
Overview
Impact Crusher with the advanced world standard, uses the latest technology around the world. Because the rotor is the key part of the crusher and also the most critical part of inspection and acceptance, our company develops and produces the strong and heavy type rotor in order to get the higher rotary inertia. The use of high abrasion-resistant material and the best design of the crushing chamber make the performance of the crusher more remarkable. This product can handle materials with side length below 100-500mm, and its concentrative strength can reach up to 350Mpa. It has the advantages of large crushing ratio and cube particles after crushing.
Features
  1. Wide feeding inlet, high crushing cavity, suitable for materials with high hardness and lumpiness, less stone powder and suitable for requirement of high-quality materials.
  2. Complete crushing function, high productivity, less consumption of machine parts and high comprehensive efficiency.
  3. Keyless connection, convenient maintenance, economical and reliable.
Technical Data
Model

Specifications

(mm)

Feed Opening

(mm)

Max.Feeding Side Length(mm) Capacity(t/h) Power(kW) Total Weight(t)

Dimensions

(L x W x H)     (mm)

PF-1007 1000x700 400x730 300 30-70 45 12 2330x1660x2300
PF-1010 1000x1050 400x1080 350 50-90 55 15 2370x1700x2390
PF-1210 1250x1050 400x1080 350 70-130 110 17.7 2680x2160x2800
PF-1214 1250x1400 400x1430 350 100-180 132 22.4 2650x2460x2800
PF-1315 1320x1500 860x1520 500 130-250 220 27 3180x2720x2620
PF-1520 1500x2000 830x2040 700 300-550 400 50.6 3959x3564x3330



Application

This Impact Crusher, widely used in mining industry.

Material and precision can be as requested. We can design and producing according to customer drawings.

All of our production procedures are strictly controlled by quality department, so we can be sure the final products to meet your requirements.
