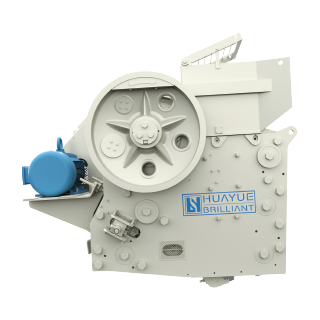

MC

————

JAW

CRUSHER

□ FEATURES

All MC series jaw crushers adopt an innovative modular,weld-free frame structure, delivering maximum fatigue resistance,optimal reliability, and flexible installation configurations.

The motor transmits power via a belt drive to the movable jaw,which performs cyclic motion around the eccentric shaft relative to the fixed jaw.As the movable jaw moves upward,the angle between the toggle plate and the jaw increases.When the movable jaw approaches the fixed jaw,materials are crushed through combined compression and shear forces.

During the downward stroke,the toggle plate-jaw angle decreases.Driven by the rod and spring system,the movable jaw retracts from the fixed jaw,allowing crushed material to discharge freely through the bottom outlet.

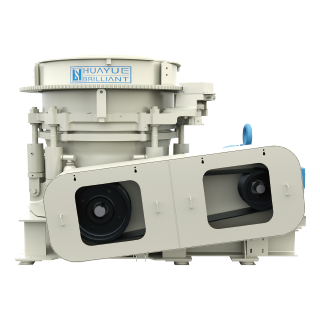

MHP

————

HYDRAULIC

CONE CRUSHER

□ FEATURES

Our cone crushers are designed for crushing hard and medium-hard minerals and rocks, including iron ore, limestone, copper ore, quartz, granite, and sandstone. In production lines, they serve as primary, secondary, or tertiary crushing units.

The MHP series cone crushers integrate optimized crushing speed, stroke, and chamber geometry – a revolutionary design that enhances capacity, product quality, and application versatility. From limestone to taconite, ballast production to manufactured sand, and compact mobile plants to metal mines, these crushers deliver unmatched performance in medium, fine, and ultra-fine crushing stages.

MGP

————

SINGLE CYLINDER

HYDRAULIC

CONE CRUSHER

□ FEATURES

Why Choose MGP Series Cone Crushers?

The liners maintain stable performance throughout their lifespan, featuring dynamic setting adjustments, low installation height, versatility, easy maintenance, and eco-friendly operation. Through continuous development, MGP series cone crushers efficiently, reliably, and economically crush materials into final products that meet customer requirements.

For the stone or mining industry, crushing equipment must deliver high productivity, superior particle shape, and excellent mobility.

MCS&MCH

————

SINGLE CYLINDER

HYDRAULIC

CONE CRUSHER

□ FEATURES

Hydraulic System

The hydraulic system ensures safe operation and precise setting adjustments, incorporating a heavy-duty hydraulic cylinder to support the main shaft and facilitate CSS optimization. Integrated automatic overload protection allows tramp iron or non-crushable materials to pass through, after which the system smoothly returns the main shaft to its original position with minimal downtime.

Automatic Control System

Our cone crushers are equipped with an automated setting system that dynamically adapts to varying feed conditions. Through continuous monitoring of liner wear, the system optimizes liner utilization and enables predictive replacement scheduling to align with planned maintenance shutdowns.

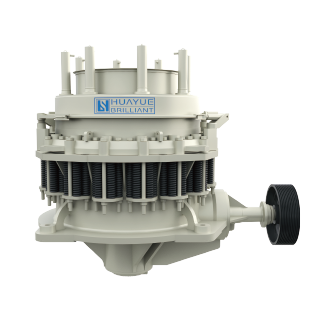

SYMONS

————

CONE

CRUSHER

□ FEATURES

Symons cone crushers have earned global recognition for their exceptional performance in the crushing industry.

The unique Symons-type crushing principle delivers unmatched productivity and consistent product gradation across the entire capacity range. Built with superior manufacturing quality, these crushers ensure extended service life while minimizing production and maintenance costs.

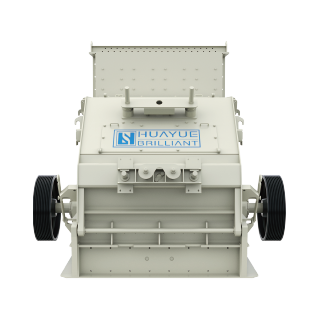

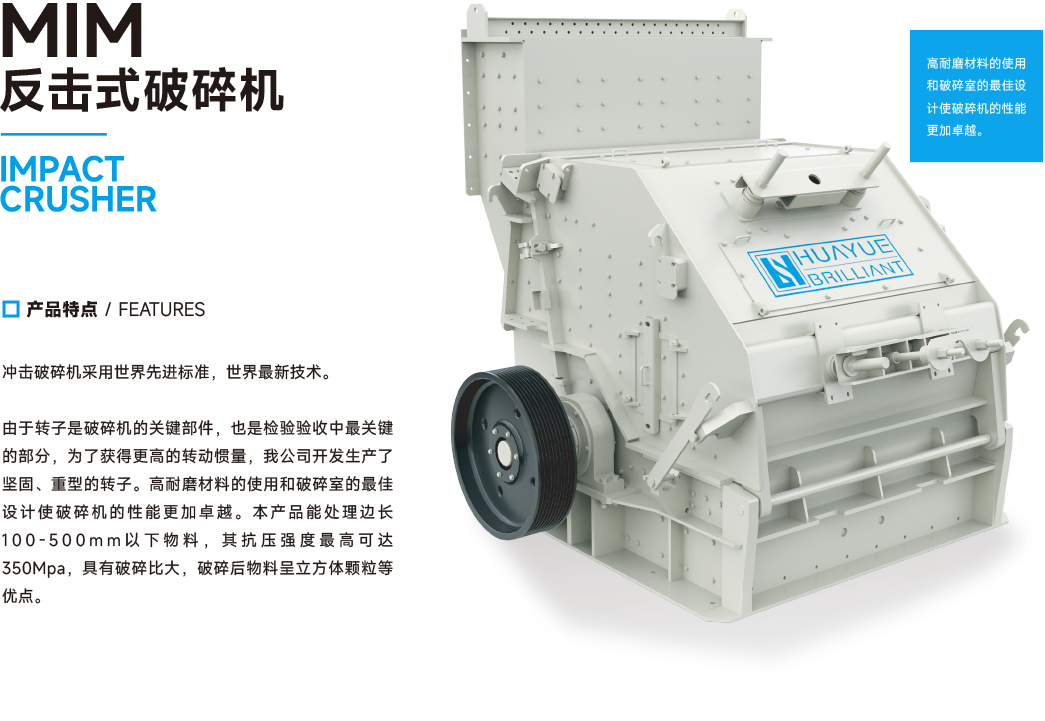

MIM

————

IMPACT

CRUSHER

□ FEATURES

Impact crushers are engineered to global standards with leading-edge technologies.

The rotor, as the crusher’s core component, is precision crafted into a heavy-duty structure for superior rotational inertia, ensuring maximum crushing efficiency. High-wear-resistant materials and an optimized chamber design enhance durability and performance in abrasive applications. Capable of processing materials up to 500mm in size with compressive strength resistance up to 350 Mpa, these crushers deliver high reduction ratios while producing uniformly cubical end products – ideal for aggregate shaping and industrial mineral processing.

MVS

————

VSI

CRUSHER

□ FEATURES

Developed through iterative technical enhancements based on global innovations and localized adaptation to China’s aggregate production demands, MVS Series High-Efficiency Vertical Shaft Impact (VSI) Crusher represents a cutting-edge solution for engineered sand manufacturing.

Ideal for processing manufactured construction sand, quarry aggregates, and metallurgical slags, this crusher outperforms conventional models in crushing medium-hard to extremely abrasive materials with superior production efficiency.

Vertical shaft impact crushers are designed to rely on the sudden impact between ore and hard object like other impact equipment. Therefore, they share the same basic characteristics with other impact crushers, and their design is preferred. This top-fed, bottom-driven vertical shaft impact crusher is light in weight and compact in structure, making it ideal for installation in existing or new work processes.

MQY

————

OVERFLOW TYPE

BALL MILL

□ FEATURES

The ball mill is designed to grind ores and materials into desired particle sizes, widely applied in metallurgy, mining, building materials, and chemical industries by domestic and international clients.

Comprising key components such as the feeding system, main bearings, cylinder, rotation assembly, discharge outlet, and main motor, our ball mills operate through a precisely engineered mechanism. The motor drives the mill’s rotation via gears and reducers at optimized speeds, causing grinding media inside the cylinder to be lifted by centrifugal, frictional, and gravitational forces. As the media cascade or drop from height, materials are crushed by impact forces and finely ground through abrasion. Processed materials are then discharged through the outlet for further treatment.
