CRUSHING AND. GRINDING EQUIPMENT
MIM
————
IMPACT
CRUSHER
□ FEATURES
Impact crushers are engineered to global standards with leading-edge technologies.

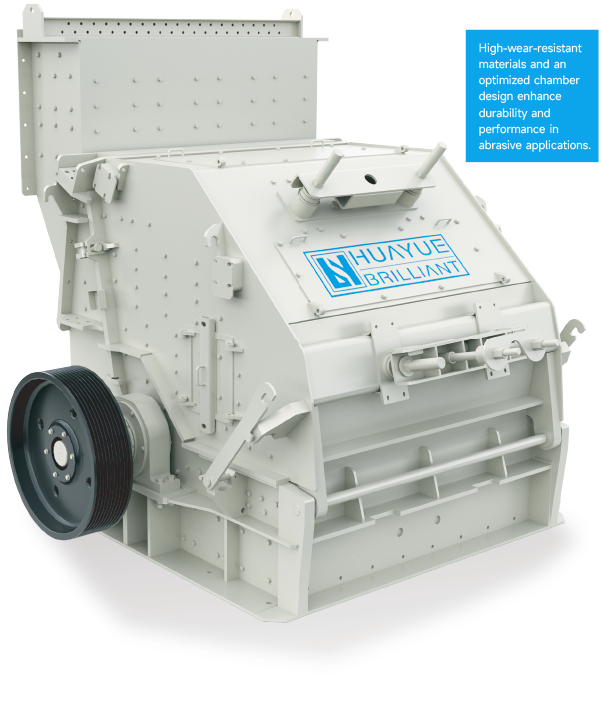

The rotor, as the crusher’s core component, is precision crafted into a heavy-duty structure for superior rotational inertia, ensuring maximum crushing efficiency. High-wear-resistant materials and an optimized chamber design enhance durability and performance in abrasive applications. Capable of processing materials up to 500mm in size with compressive strength resistance up to 350 Mpa, these crushers deliver high reduction ratios while producing uniformly cubical end products – ideal for aggregate shaping and industrial mineral processing.
□ Main Specifications
|
Model |
Feed Opening (mm) |
Max. Feeding Size (mm) |
Rotor Diameter (mm) |
Rotor Length (mm) |
Max. Rotational Speed (mm) |
Maximum Installed Power（kW） |
Weight (t) |
|
MIM1213 |
1320×880 | 600 | 1200 | 1300 | 700 | 220 | 13.1 |
|
MIM1315 |
1540×930 | 600 | 1300 | 1500 | 700 | 315 | 16.6 |
|
MIM1520 |
2040×995 | 700 | 1500 | 2000 | 600 | 500 | 27.6 |
|
MIM1522 |
2240×995 | 700 | 1500 | 2200 | 600 | 630 | 31.7 |
|
MIM1313 |
1320×1200 | 900 | 1300 | 1300 | 700 | 220 | 18.4 |
| MIM1415 | 1540×1320 | 1000 | 1400 | 1500 | 600 | 315 | 22.5 |
| MIM1620 | 2040×1630 | 1300 | 1600 | 2000 | 500 | 500 | 41.5 |
| MIM2023 | 2310×1980 | 1500 | 2000 | 2300 | 400 | 1000 | 75.6 |
